Recent Projects
Material Handling Robot with Plasma Arc Welding

Material Handling Robot with Plasma Arc Welding

  • Produces 1 part every 12 seconds
  • Intuitive Recipe based programming capabilities
  • 12" full color HMI touch screen
  • Automated infeed and outfeed with vision sensing
  • RIA Compliant

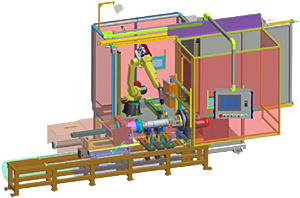

Robotic Welding Cell with Twin Station Head and Tailstocks

Robotic Welding Cell with Twin Station Head and Tailstocks

  • GMAW Welding at 30ipm travel speeds
  • Full color HMI touch screen
  • Intuitive recipe based programming
  • RIA Compliant
  • Cutting edge cable management
  • Detach Jog functionality is standard
Robotic Material Handling Bushing Press

Robotic Material Handling Bushing Press

  • Press forces up to 50,000 lbs
  • Automatically presses 14 bushings per cycle
  • Automatic magazine bushing feeder
  • Automatic bushing arbor tool change
  • Servo controlled bushing press (no hydraulics)
  • Full color HMI w/intuitive recipe based programming

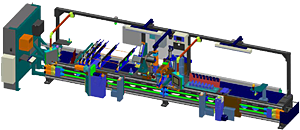

Servo Controlled Assembly Station

Servo Controlled Assembly Station

  • 14 axes of motion
  • Provides instant feedback of over 17 key quality checks
  • Full color HMI w/intuitive recipe based programs
  • Over 250 different part numbers
  • Cycle times under 1 min
  • RIA Compliant
Robotic Weld Cell with Automated Assembly

Robotic Weld Cell with Automated Assembly

  • GMAW Welding up to 500A
  • Servo controlled assembly functions
  • Full color HMI w/intuitive programming
Automated Pull Tester

Automated Pull Tester

  • Provides up to 144,000lbs of pull force
  • Accurately measures stress/strain within +/-.001"
  • Automatic part reject capabilities
  • Automatic data reporting to plant network
Tack Welding Fixture with Hydraulic Clamping

Tack Welding Fixture with Hydraulic Clamping

  • Locates 126 individual pieces
  • 44 hydraulic cylinders with 12 sequences
  • Hawk Technology Ltd Patented tooling ball system
Tack Welding Fixture with Pneumatic Clamping

Tack Welding Fixture with Pneumatic Clamping

  • Powered trunnions with up to 600 ft/lbs of torque
  • Integral backbone to provide outstanding weld access
  • Hardened locators with shimmability
  • Six degrees of freedom accurately for every detail
  • Full 3d parametric concurrent design

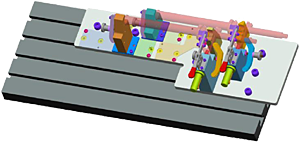

Machining Fixture

Machining Fixture

  • Manual clamping
  • Fixture keys for accurate location
  • T-Slot table custom manufactured
  • Coolant resistant materials used throughout
  • Designed with vibration dampening
Three arm welding system

Three arm welding system

  • 20 axis welding system
  • 12,000lb capacity
  • 85’ of linear track
  • Three welding arcs simultaneously
Machining Fixture

Vision Inspection System

  • 8 lane simultaneous inspection
  • Speeds up to 300 parts per minute each lane
  • Achieved .05% repeatability for inspection
  • Food Grade rated
  • Over 40 installed systems operating worldwide
Vision Inspection System

Vision Inspection System

  • 8 lane simultaneous inspection
  • Speeds up to 300 parts per minute each lane
  • Achieved .05% repeatability for inspection
  • Food Grade rated
  • Over 40 installed systems operating worldwide
